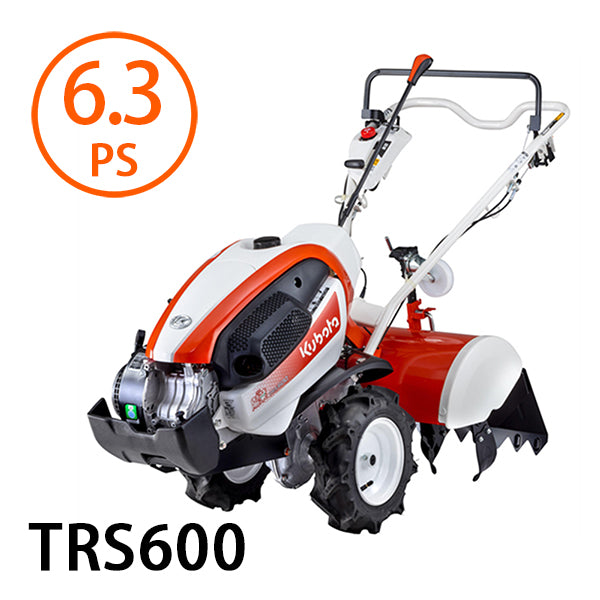

Kubota TRS-6000(6.3PS)
Kubota TRS-6000(6.3PS)
Couldn't load pickup availability
Summary
| Corresponding area | Approximately 270 tsubo |
|---|---|
| Tillage width | 550mm |
| Maximum tillage depth | 160mm |
| Continuous operation time when gasoline is full | Approx. 150 minutes |
| Fuel Tank Capacity | 2.5L |
Features and Performance

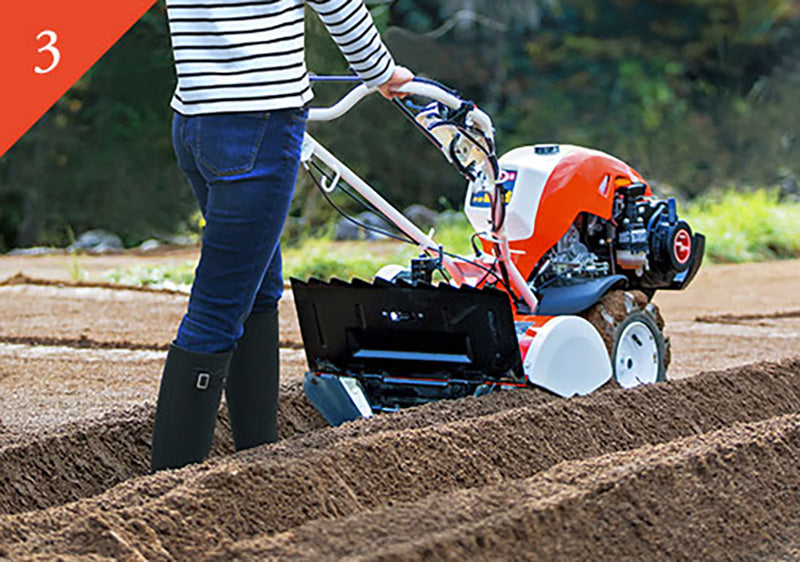

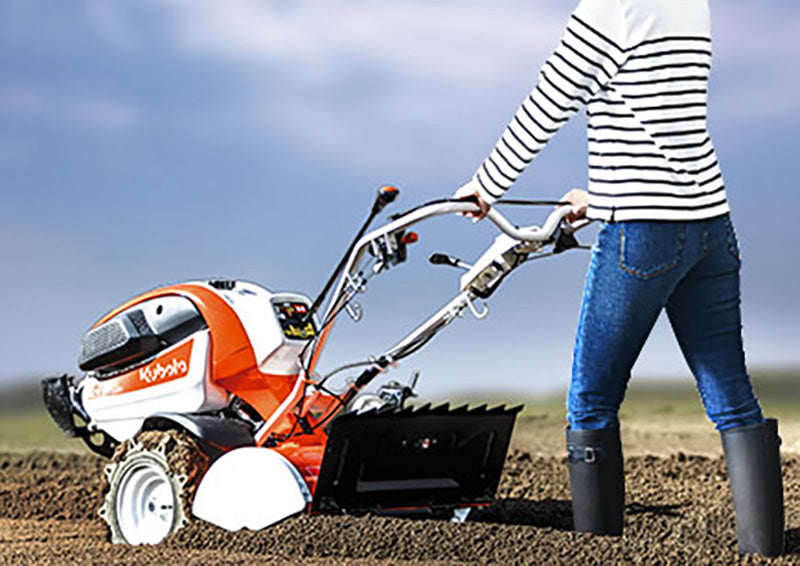

Plowing and ridge making
Easily create ridges with the included mat Standard specifications
It can not only till but also create ridges. With the standard version with a ridge-making mat and the rotary cover that can be opened and closed, you can easily create ridges of various sizes.
Two types of ridge shapes can be created.
There is ample leg space, allowing you to work comfortably.
By narrowing the width of the groove, more ridges can be created.
Ridge creation procedure
Flip up the leveling board for tilling and set up the ridge mat.
Adjust the width of the ridge groove by inserting and removing the pin.
You can create beautiful ridges easily.
Ridge size can be freely adjusted Rotary cover opening and closing specifications (U specification/US specification)
Open the rotary cover and adjust the size of the ridges. The U-type allows the cover to expand and contract.
Open the rotary cover to create large ridges.
By shrinking the cover with U-shaped design, it is possible to create small ridges and cultivate and weed between narrow ridges.
Ridge creation procedure
Open the left and right rotary covers.
Replace the jaws so that they face outward. *For US specifications, there is no need to replace the jaw shaft.
The size of the ridges is determined by the angle of the side cover.
When the rotary tines are rotated in reverse, the soil jumps up from side to side, creating ridges.
Easy to use
1.Easy start
You can start the engine by simply pulling the starter rope slowly, which puts less strain on your shoulders and arms, making it easier for you.
2. Wet Air Cleaner
3. Fuel tank that lets you see the remaining fuel level at a glance
4. Safe operation lever
Putting the lever in "Turning" unlocks the straight-line lock, stops the rotary and allows for smooth turns. Putting it in "Work" again improves straight-line stability.
5. QR code*
By holding your mobile device over the device, you can access instruction videos and instruction manual sites.
*"QR Code" is a registered trademark of DENSO WAVE Inc.
6. Easy to use handle adjustment lever
7. Simple gear shifting with just one lever
Forward/reverse and rotary rotation are easy to operate. The rotary stops when reversing for safety.
8. Parking brake
9. Movable tail wheel (U spec/US spec is movable/working tail wheel)
It can easily be driven from the barn to the field.

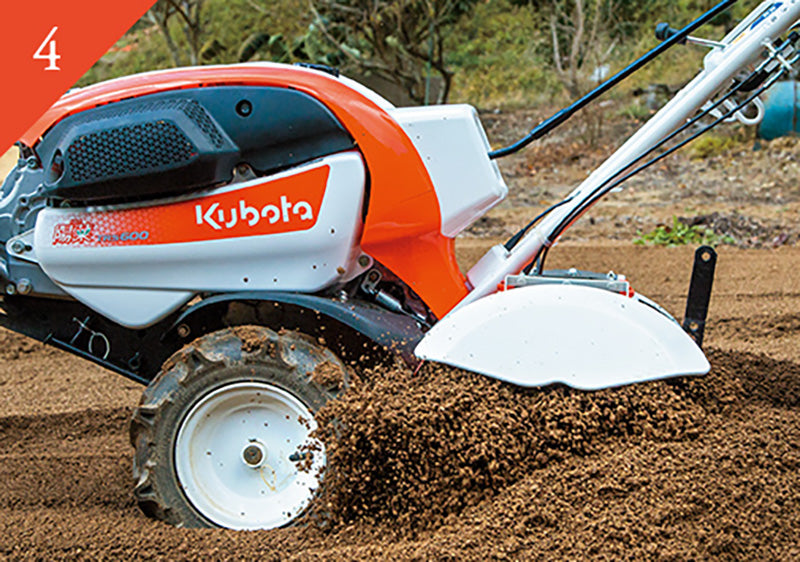

10. Equipped with a rotary reversing mechanism that makes it easy to till hard soil
By simply shifting the main speed change lever into "reverse," you can perform reverse work that allows you to thoroughly till even hard soil.
*For the TRS500, the jaw shaft needs to be replaced when performing reversing operation.
11. Large diameter tires (J specification)
The large traction force allows for more stable work.
12. Variable tread (excluding TRS600-H)
The tread can be adjusted to three stages, making it suitable for cultivating between furrows and for weeding.
Smile Start (E specification)
This is a self-starting type that starts the engine just by pressing the switch on the handle. The battery does not need to be charged.
Double drive rotary (H specification) for peace of mind even on hard fields
This rotary tiller rotates forward and backward on a single shaft, so it can till hard fields well and with little jumping out, making it stable. The tilling depth of 170mm is ideal for cultivating root vegetables.
Features to make setup and transportation easier (U spec/US spec)
Equipped with a one-touch pin for easy tine installation, a cap to prevent soil clogging and make tine replacement smooth, and a stand that is convenient for tread adjustment. It also has a tail wheel that stabilizes the tilling depth during work and is convenient for transportation.
